UTO-NBL-52A
Home > PRODUCTS > UTO-NBL-52A

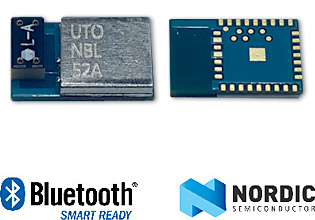

The UTO-NBL-52A is Bluetooth Low Energy Module.
It enables high performance and ultra-low power connectivity for a data communication. The product is an ideal solution form Internet of Things (IOT) applications
Features
- Bluetooth v5.0 Compliant
- Nordic nRF52832
- On board chip antenna
- 32-bit ARM Cortex-M4F Processor
- Up to 30 GPIO pins, 8 Analog Inputs
- 512kB Flash/ 64kB RAM
- 12-bit, 200ksps ADC
- Audio Interfaces : I2S and PDM
- Digital Interfaces : I2C, SPI, UART, PWM
- NFC for Out-of-Band (OOB) pairing
- Temperature: -40¡ÆC to +85¡ÆC
- Dimensions: 5.9 x 8.9 x 1.9 mm
Applications
- Internet of Things (IOT) Connected Devices and Appliances
- Wearables
- SmartHome sensors
- Connected white goods
- Computer peripherals
- Voice-command smart remotes
- A4WP ¡®Rezence¡¯ wireless charging
- Beacons
- Sports and fitness sensors and hubs
- Connected health products
- Smart watches
- RC Toys
- Interactive games
- Building automation and sensor networks
Module Specifications
- Supply Voltage : 1.7V to 3.6V
- Dimensions : 5.9 x 8.9 x 1.9 mm
- Temperature : -40¡Æ to +85¡ÆC (Operating), -40¡Æ to +120¡ÆC (Storage)
- Protocols : Bluetooth Low Energy v5.0, ANT, Gazelle, Proprietary 2.4GHz
- Antenna : On Board Chip
- GPIOs : Up to 30 GPIOs, 8 Analog
- Current : Rx active 12.9mA, Tx active 7.5mA
- Module Pads : LGA
- Clock Sources : 32MHz crystal (Main), 32.768kHz (RTC)
- Processor : 32-bit ARM Cortex-M4F Processor
- Memory : 512kB Flash / 64kB RAM
Bluetooth Specifications
- Specification : Single Mode Bluetooth Smart v5.0
- Modes : Peripheral and Central Modes, Observer, Broadcaster
Radio Specifications
- Power Output : -20 dBm to +4 dBm
- Receiver Sensitivity : -96 dBm
- Data Rates : 250 kbps, 1 Mbps, 2 Mbps
Peripherals
- Timers : 5 x 32-bit, 3 x 24-bit
- SPI : Master and Slave
- I2C : Master and Slave
- UART
- ADC : 8 Channel 12-bit at 200ksps
- PWM
- PDM
- Comparator
- I2S : Master and Slave I2S
- NFC
Certifications
- FCC : 2AMD4UTO-NBL-52A
- CE : RED-2779
- KC : MSIP-CRM-uto-UTO-NBL-52
- Bluetooth SIG : D038906 (End Product)
- IC : 27695-UTONBL52A
- JPMIC (JAPAN) : 006-001009
